Jib Cranes

Jib Cranes

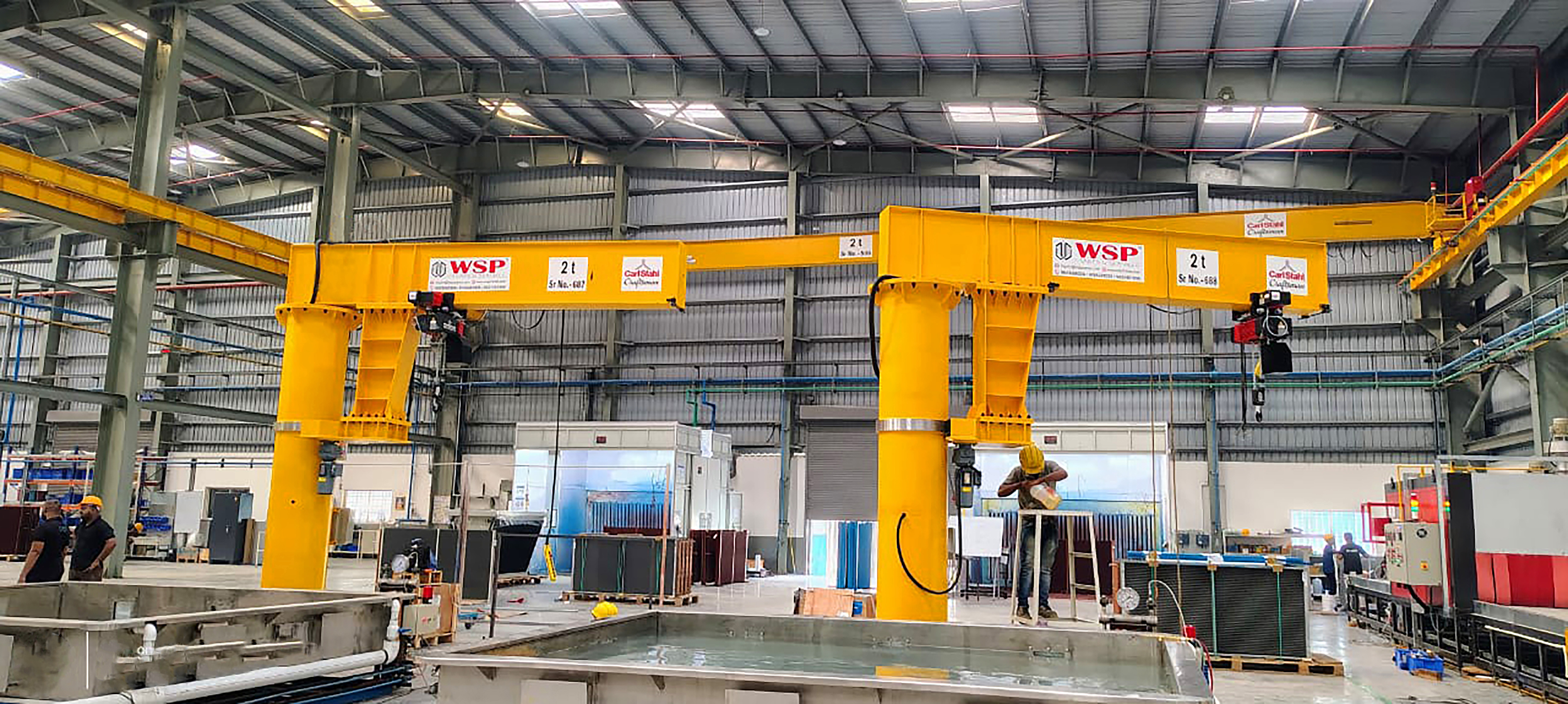

WSP Cranes & Services offers robust and versatile Jib Cranes with capacities ranging from 250kg to 5t, designed to enhance material handling efficiency across diverse industries. Available in both motorized and manual rotation, our jib cranes can achieve up to 360° rotation, providing unmatched flexibility for lifting and maneuvering loads. Customers can choose between wire rope hoist and electric chain hoist options, tailored to their specific operational requirements.

Overview

Jib Cranes are engineered for localized lifting, workstation handling, and repetitive material movement within a defined circular working radius. Designed for high-efficiency point lifting, they are available in both manual and motorized rotation options, offering smooth, controlled slewing and optimal load positioning. Ideal for indoor production areas, machine loading applications, and assembly stations where independent lifting support is required without overhead runway systems.

Technical Specification
  • Capacity : 250 kg – 5 Ton
  • Rotation : 90° / 180° / 270° / 360°
    (Manual or Motorized)
  • Design Standards : IS 3177 / IS 807
Key Features

Jib Arm Construction: Rigid tubular/rolled beam design with minimal deflection under rated load

Column Structure: Heavy-duty fabricated column pedestal or wall-mounted configuration

Slewing Mechanism: Manual rotation with friction bearings

Hoisting System: Electric Chain/Wire Rope Hoist (FEM/ISO duty class) with precise lifting and smooth travel

Jib Rotation: 90°, 180°, 270°, or full 360° rotation based on installation requirement

Travel Motion: Electric trolley / manual push-pull trolley available

Bearings: Thrust & roller bearings for smooth, low-effort slewing

Power Feeding: Festoon system / energy chain / flat cable with swivel joint arrangement
Applications

Automotive

Aerospace

Automobile

Chemical

Pharma

Manufacturing
