Working Principle of JIB Crane
Industrial Jib Crane moves the hoist by rotating the arm of the crane over a point. The item is lifted vertically using a hoist attached to the arm and is swung horizontally by the arm. This set up enables movement over a certain radius without the use of tracks. The design is based on the balance and leverage to work smoothly and safely. We have our cranes with the required certificates of safety and quality standards.
Types of JIB Cranes We Manufacture
As an experienced JIB crane manufacturer in India, WSP Cranes & Services manufactures different JIB crane configurations based on lifting capacity, available floor space, working radius, and application requirements.
Technical Specifications of JIB Crane
We've added below a specialized table of JIB Crane in India that provides further technical specification information.
| Feature | Freestanding (Pillar) | Wall-Mounted / Bracket | Mast-Type Jib |
|---|---|---|---|
| Lifting Capacity (SWL) | 250 kg to 10 Tons | 250 kg to 5 Tons | 500 kg to 10 Tons |
| Arm Length (Reach) | Up to 15 Meters | Up to 10 Meters | Up to 12 Meters |
| Rotation Angle | 360° (Full Circle) | 180° to 270° | 360° (Full Circle) |
| Lifting Height | Up to 10 Meters | Limited by Column Height | Up to 12 Meters |
| Mounting Requirement | Concrete Foundation / Base Plate | Existing Building Column/Wall | Top & Bottom Floor Support |
| Hoisting Media | Electric Chain / Wire Rope | Electric Chain / Manual | Electric Chain / Wire Rope |
| Trolley Movement | Push-Pull / Geared / Electric | Manual / Electric | Manual / Electric |
| Slew Bearing Type | Heavy-duty Roller / Ball | Pivot Pin & Bushing | Top & Bottom Pivot Bearings |
| Slewing Mechanism | Manual / Motorized | Usually Manual | Manual / Motorized |
| Headroom Requirement | Medium to High | Low (Space Saver) | Minimal (Floor-to-Ceiling) |
| Protection Class | IP-54 / IP-55 | IP-54 / IP-55 | IP-54 |
Features of JIB Crane
- Rotation Capacity: The ability to offer variable rotation, wall-mounted units usually offer 180o-270o.

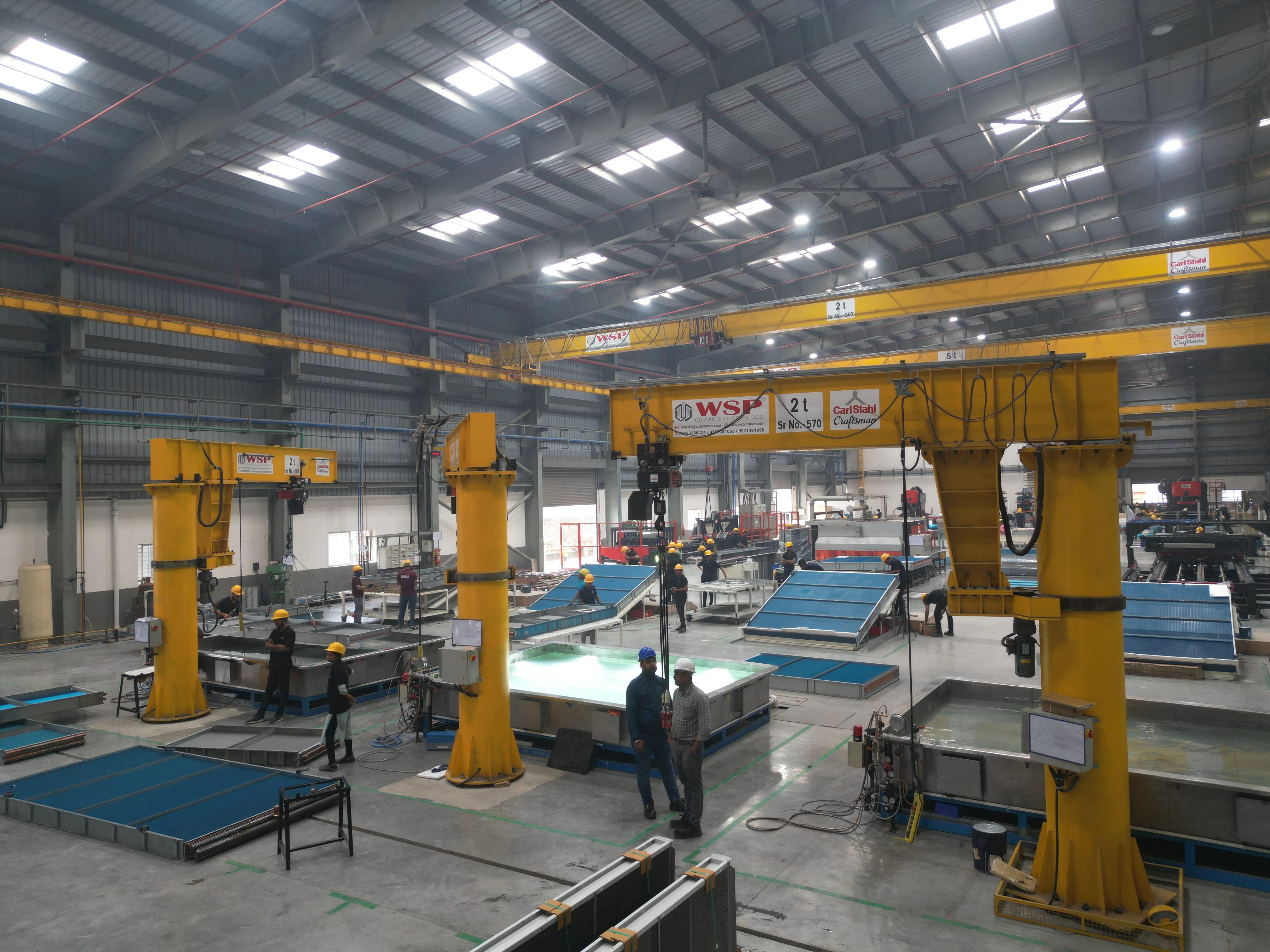

- Possible Mounting: It is highly versatile, including floor-mounted (freestanding).
- Lifting Capacity: Typically, it carries a load of 125 kg to 5,000 kg.
- Mechanisms of operation: may be manual, or pneumatic rotation.
- Construction: Made of a heavy horizontal jib arm.
Main Parts and Usage of JIB Crane
- Mast/Pillar (Vertical Support): The major vertical support which carries the weight of the whole structure either lying on the floor or pinned on a wall/column.
- Boom/Jib Arm (Horizontal Beam): This horizontal beam which carries the trolley and hoist and can be rotated 180-degree to 360-degree to manoeuvre loads.
- Trolley: This is a device that moves on the boom to enable the hoist to move horizontally so that it can place the load where it is required.
- Hoist: The device that is connected to the trolley, either electric, manual or pneumatic, which is used to raise and lower loads.
- Rotation Mechanism: enables the boom to turn giving it a great deal of motion.
- Controls: Pressed button controllers to control the movement of the hoist and trolley.
- Festoon System/Electrification: Powered to the motor and trolley.
Benefits of JIB Crane
We as JIB Crane suppliers in India, we offer different benefits according to factories which are given below.
- Versatility: JIB cranes are able to fit different activities by rotating either completely or partly. JIB Crane are easily placed in small workshops or large factories.
- Space Efficiency: These occupy overhead space and not floor space, which opens more ground to work on. This ensures that workspaces are clean and available.
- Ease of Use: Simple pendants or remotes are used to control movement by operators. Accurate placement minimizes working and mistakes.
- Cost Effectiveness: Widely spaced undercarriage reduces initial and service costs. Sustainable constructions are long-lasting and require few maintenances.
- Safety Features: Swings and overloads are avoided by built-in brakes and limits. Routine designs comply with the safety norms in the industry.
Applications of JIB Crane
We serve as JIB Crane exporters in India, it is applicable in different sies which are given below.
- Manufacturing and Assembly: it is used in repetitive lifting operations, in positioning heavy parts during assembly and in supporting welding or machining activities.
- Machine Shop Support: Necessary to move heavy or raw materials or finished products onto CNC machines as well as lathes and other production components.
- Warehousing and Logistics: They are used to load/unload the trucks, to move goods around the working areas, and to lift the goods to the higher levels of storage.
- Maintenance and Repair: Perfect when it comes to repairing, disassembling and assembling of heavy machinery, engines and tools.
- Construction and Fabrication: Construction yards are used in the transportation of structural parts of a construction, e.g. concrete panels or steel beams.
- Special Purpose: These are used in both foundries and chemical factories to transport molten metal and hazardous chemicals respectively
Installation Process of JIB Crane
- Preparation Foundation/Structure Prep: Pouring of concrete foundation with anchor bolts (free-standing units). In the case of wall mounted it is important to ensure that the wall/column is in a position to support the load.
- Mast Installation: Hoist the pillar/mast on the anchors, tap it with a level, and screw in bolts.
- Boom Assembly: Connect the boom (jib arm) to the mast making sure that it is aligned to the rotation axis.
- Hoist and Trolley: screw the electric hoist and trolley onto the boom arm.
- Electricals & Testing: Wire collector ring, power, 360-degree rotation, and load test.
Why Choose WSP Cranes as Your JIB Crane Manufacturer?
- Specialization: Our specialization is to be manufacturers of JIB Crane in India
- Reliability: Our brand is reliable and quality tested.
- Experience: Performance is trusted by the 11 years of experience.
- Certification: Cranes are supplied with necessary safety ISO certificates.
- Custom Design: Custom-made designs suit your requirements.
WSP Cranes & Services is well-known JIB Crane manufacturers in India, suppliers and exporters in India. Explore the strength of JIB cranes of the most successful Indian manufacturers. Your workspace will be changed by our trusted brand that lifts effortlessly and is smartly designed. Stress free, flexible and efficient in regard to your material requirements. Powerful after sales services make you run smoothly. Select us as certified quality and last. Raise your operations up to date with performer cranes. Collaborate with professionals who are exceptional in all instances. Contact us for more details.
FAQs
A JIB crane is a compact lifting system designed to move and position heavy materials efficiently within a defined work area. It uses a horizontal boom, known as a jib, that supports a hoist for lifting and lowering loads. Depending on the application, JIB cranes can be floor-mounted, pillar-mounted, or wall-mounted, making them a practical choice for workshops, warehouses, manufacturing units, and industrial facilities.
JIB cranes offer several advantages, including precise load positioning, space-saving installation, easy operation, improved productivity, and reduced manual material handling. They are especially useful for repetitive lifting tasks where speed and accuracy matter. A properly selected JIB crane can make everyday lifting operations safer, smoother, and more efficient.
Yes, JIB cranes can provide safe and reliable lifting when they are correctly designed, installed, operated, and maintained. Key safety features may include brakes, limit switches, overload protection, emergency stop controls, and robust structural components. Operators should always follow the crane manufacturer's load capacity, operating instructions, and applicable safety requirements.
The lifting capacity of a JIB crane depends on its design, boom length, mounting arrangement, span, duty cycle, and application requirements. JIB cranes are available in different capacities to suit light, medium, and heavy-duty material handling. Always select a crane based on the required working load and ensure the rated capacity is never exceeded.
Absolutely. One of the biggest benefits of a JIB crane is its space-efficient design. Wall-mounted and pillar-mounted JIB cranes can provide effective lifting without requiring a large floor footprint. Their controlled boom rotation makes them particularly useful for workstations, assembly areas, machine shops, maintenance bays, and other space-constrained environments.

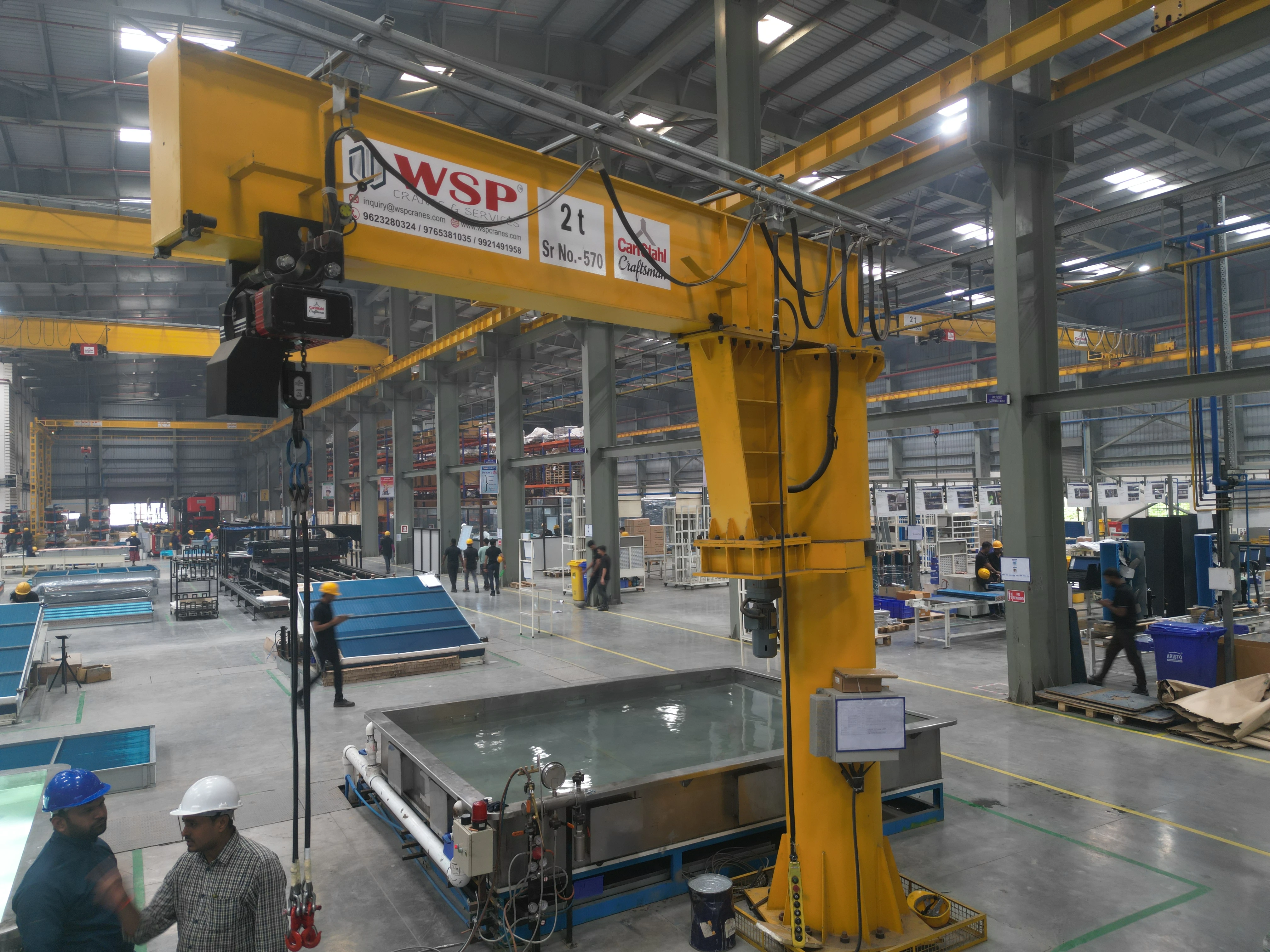

A wall-mounted JIB crane is attached to a suitable structural wall or column, helping save valuable floor space. A pillar-mounted JIB crane uses a dedicated vertical pillar or column for support and can offer greater flexibility in positioning the lifting area. The right option depends on available space, building structure, required lifting capacity, and boom rotation.
Regular JIB crane maintenance should include checking the hoist, hook, wire rope or chain, brakes, limit switches, bearings, boom, mounting structure, and electrical components. Moving parts should be lubricated according to the manufacturer's recommendations, while worn or damaged components should be addressed promptly. A planned preventive maintenance schedule helps improve reliability and extend crane service life.
JIB cranes are widely used in manufacturing plants, engineering workshops, warehouses, fabrication units, machine shops, automotive facilities, maintenance areas, and assembly lines. They are particularly effective for repetitive lifting, workstation material handling, machine loading and unloading, component positioning, and transferring loads over short distances.
Choosing the right JIB crane starts with evaluating the required lifting capacity, lifting height, boom length, working radius, rotation angle, duty cycle, installation location, and available headroom. You should also consider the type and frequency of loads being handled. Consulting a qualified crane manufacturer or engineer can help ensure the selected JIB crane meets your operational and safety requirements.
A JIB crane is an excellent choice when you need fast, controlled, and precise lifting within a specific workspace. Unlike manual lifting, it can reduce physical strain on workers while improving handling efficiency. Its compact footprint, flexible mounting options, and straightforward operation make it a valuable material-handling solution for businesses looking to improve productivity and workplace safety.
